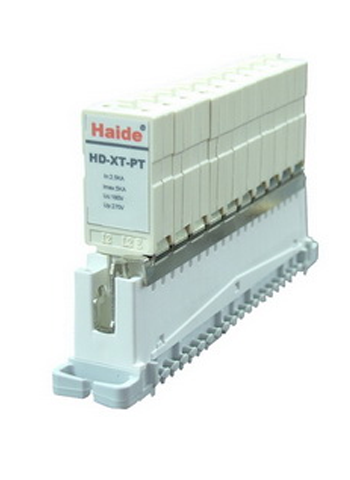

SPC exchange lightning arrester

This product is designed according to the standard of IEC surge protection device,which is suitable for SPC exchange eqiupment (LSA-PLUS) and has special standard socket.It internally contains the communication line protection of 10-line series connection and has double functions of over-voltage and over-current protection,which can be in a pull type.

MODEL		HD-XT-PT/10
Nominal working voltage Un		180V
Maximum continuous working voltage Uc		230V
Nominal discharge current In （8/20μs）		2.5KA
Maximum discharging current Imax（8/20μs）		5KA
Voltage protection level Up	X-X	≤250V
	X-G	≤250V
External dimension		95×19×49mm
Response time Ta		≤100ns
Operating temperature range Tup		-40℃to +70℃
Insertion loss		≤0.2dB
Data transmission rate		1Mbps
Protection grade		IP50
Sheathing material		Fire-proof PBT
Interface mode		Pull type

Installation method：

Put an arrester in series at the leading end of the line interface of the protected equipment.”O(jiān)UT” is equipment end and “IN” is incoming line end.Connect the arrester ground terminal and lightning protection ground lead well (suggested earth resistance≤4Ω)
