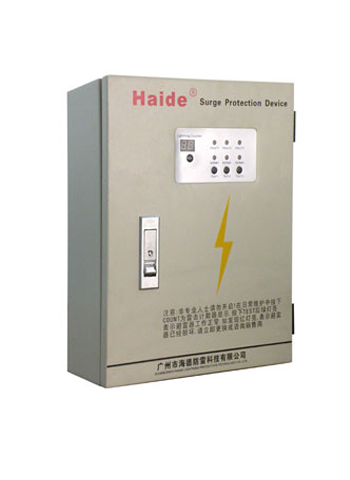

B+C composite power supply lightning protection box

Electric surge protector of composite low-voltage distribution system, which is in the form of a box, is designed according to IEC standard. It adopts the most advanced technology of preignition clearance and automatic matching of energy and has validation detection indication, overflowing and overheating protection, lightning stroke numbering display and powerful discharge capacity of lightning current. It can be used in Grade B and C lightning protection for the general supply of building, machine room, plant and enterprise to make sure the safe operation of electronic equipment and other utilization equipment. This lightning arrester is very convenient to be maintained. It connects with the circuit in parallel and has no limit to the power of the connected device.

Model	HD-D380BC-XL200	HD-D380BC-XL100	HD-D380BC-XL60	HD-D380/220B-XL
Nominal working voltage Un	380V	380V	380V	380V
Maximum continuous working voltage Uc	385V	385V	385V	385V
Nominal discharge current In （8/20μs）	200KA	100KA	60KA	10KA
Voltage protection level Up	2KV	1.5KV	1KV	2.5KV
Response time Ta	100ns
Operating temperature range Tup	-40℃to+70℃
Working condition indication	Green light means work normally,red light means fault indicaiton.
Section of minimum installed conductor	6mm2 multi-folded wire
Protection grade	IP20

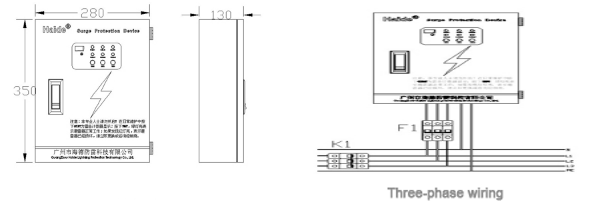

External dimension	280350130mm
Sheathing material	Metal spraying
Mode of connection	parallel connection
Protection mode	4+0/3+1/1+1/2+0

Installation method：

Ground the null line repeatedly when Long-distance overhead incoming lines enter buildings.

Plug the power phase line (L) and null line (N）into corresponding connector of the electric surge protector and make sure it's firm and reliable. Connect the ground terminal of arrester with the ground lead of lightning protection well (recommended earth resistance ≤4Ω).

Suggested specification of the lead wire: no less than 6mm2, short and straight.
